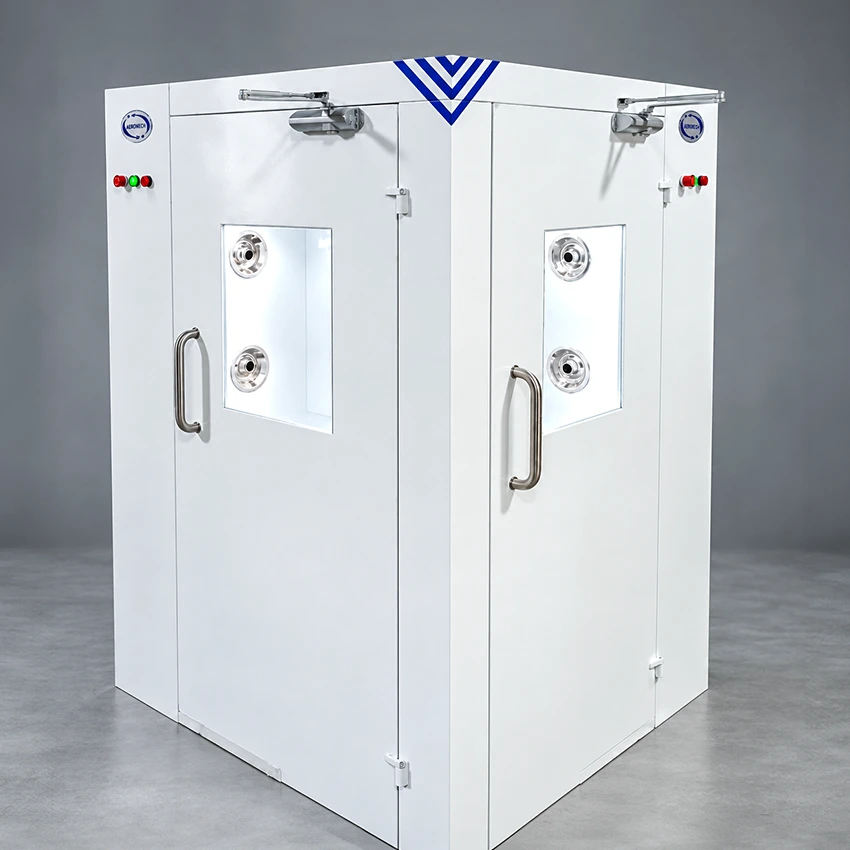

Air Shower Manufacturers in India
Aeromech manufactures and supplies Air Shower systems designed to reduce surface particles from personnel, carts and equipment before they enter cleanrooms or controlled environments. High-velocity HEPA-filtered air, interlocked doors and programmable controls support controlled cleanroom entry.
Aeromech supplies Air Shower systems across Chennai, Coimbatore, Bengaluru, Hyderabad, Kochi, Pune, Mumbai, Ahmedabad, Indore, Bhubaneswar, Kolkata, New Delhi, Gurugram and Mohali.
- High-Velocity Air Cleaning
- Interlocked Door System
- ISO Class 5 Filtered Air
Cleanroom Systems Installed
Support Across Major Indian Cities
Configuration Based on Your Requirement
Testing, Maintenance and Service Assistance

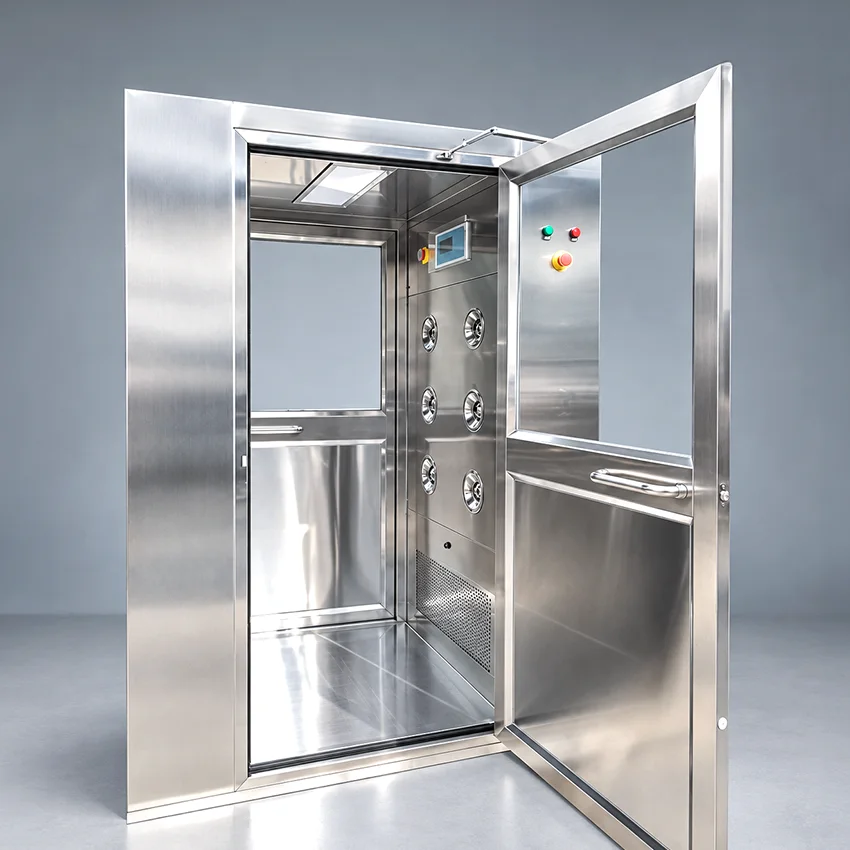

What Is Air Shower?
An Air Shower is an enclosed cleanroom entry chamber used to remove loose particles from personnel, garments, carts or equipment before they enter a cleaner controlled area.
The system uses high-velocity filtered air jets directed through adjustable nozzles. These air jets dislodge particles from exposed surfaces, while the recirculating filtration system captures the released contaminants before the clean cycle is completed.
How Air Shower Works?
- The user or equipment enters the Air Shower chamber.
- The entry door closes and the interlock system is activated.
- High-velocity filtered air is discharged through adjustable nozzles.
- Air jets remove loose particles from garments and surfaces.
- Contaminated air is drawn back into the filtration system.
- Air passes through the pre-filter and HEPA filter.
- The programmed clean cycle is completed.
- The exit door is released for entry into the cleanroom.
Air Shower Applications
Aeromech Air Shower systems are suitable for:
- Pharmaceutical cleanrooms
- Biotechnology facilities
- Electronics manufacturing
- Semiconductor fabrication
- Medical-device facilities
- Research laboratories
- Cleanroom personnel entry
- Cart and equipment transfer
- Controlled manufacturing facilities
- Contamination-sensitive production areas
The material, process and associated hazards must be reviewed before selecting an Air Shower cabinet.
Important Product-Selection Notice
An Air Shower is intended to reduce loose particulate contamination carried by personnel, garments, carts and equipment before entry into a cleanroom or controlled area.
Selection should consider:
- Personnel or equipment movement
- Required chamber dimensions
- Number of users per cycle
- Door entry and exit direction
- Air-jet coverage
- Nozzle arrangement
- Clean-cycle duration
- Construction material
- Floor requirement
- Cleanroom classification
- Emergency exit arrangement
- Interlocking and control requirements
The Air Shower should be selected according to the cleanroom entry process, traffic flow and contamination-control requirement.
Air Shower Features
Adjustable nozzles deliver high-velocity air across personnel, garments or equipment to dislodge loose particles before cleanroom entry.
Air drawn from the chamber is filtered and recirculated, supporting repeated particle-removal cycles while controlling released contaminants.
The Air Shower uses programmable microprocessor controls with timer functions and LED display for managing the clean cycle and door sequence.
Entry and exit doors are interlocked to prevent both doors from opening simultaneously during the controlled clean cycle.
Emergency stop and power-failure safety functions allow personnel to exit safely if operating conditions are interrupted.
Air Showers can be configured for straight, left or right exit arrangements according to the cleanroom layout.
Air Shower Specifications & Options
| Specification | Standard Product Information |
|---|---|
| Product | Aeromech Air Shower |
| Type | Recirculatory Type / Standard Type |
| Dimensions | As per Approved Drawing |
| Main Body MOC | Galvanized Iron with PU Coating / Stainless Steel with Satin Finish |
| Pre-Filter | Aeromech Make Pre-Filter with Micro Glass Fibre Media |
| Pre-Filter Grade | EU4 |
| Supply HEPA Filter | Imported Minipleat HEPA Filter |
| HEPA Filter Grade | H13 |
| HEPA Filter Efficiency | 99.97% down to 0.3 Micron |
| Floor | 2 mm Thick GI / SS Sheet with ESD Mat |
| Air Supply | Air-Conditioned Air Supplied by Client with Required Airflow Quantity |
| Nozzle Position | Right / Left / Top |
| Nozzle Direction | Adjustable |
| Emergency Switch | Panic Switch Inside and Outside |
| Electrical Interlock | By Heavy duty Electro magnet with Sensor |
| Controls | ON / OFF Switches with Indicator |
| Air Cleanliness | First Air from Filter – ISO Class 5 as per ISO 14644-1 |
| Airflow Velocity | 25 ± 2 m/s |
| Airflow Velocity in FPM | 5000 FPM ± 300 FPM |
| Illumination | Minimum 800 Lux |
Standard components
Depending on the approved model, the standard configuration includes components specified for the Air Shower system such as:
- Air Shower enclosure
- EU4 pre-filter
- HEPA filtration system
- Blower and motor assembly
- Adjustable air nozzles
- Interlocked entry and exit doors
- Microprocessor control
- Timer with LED display
- Internal lighting
- Viewing windows
- Panic switches
- Electrical control panel
Is Air Shower Right for Your Application?
An Air Shower is suitable where personnel, carts or equipment can carry loose particles into a cleaner controlled area.
It can be considered for:
- Personnel entry into cleanrooms
- Semiconductor fabrication areas
- Pharmaceutical manufacturing
- Biotechnology facilities
- Electronics manufacturing
- Medical-device cleanrooms
- Cart entry
- Equipment entry
- Controlled production zones
Air Shower Manufacturers in India
Aeromech manufactures Air Shower systems for pharmaceutical, biotechnology, semiconductor, electronics, healthcare and other contamination-controlled facilities.
The system can be configured according to:
- Required chamber dimensions
- Number of users
- Personnel or equipment entry
- Door orientation
- Construction material
- Air-nozzle configuration
- Clean-cycle requirement
- Cleanroom layout
- Control system
- Safety requirements
Air Showers are factory assembled and tested before supply.
Air Shower Suppliers in India
Aeromech supplies Air Shower cabinets to customers across major Indian industrial and research locations. Our supply process can include:
We review the application, material type, required work area, project location and preferred configuration.
Aeromech recommends a suitable product configuration based on the information provided.
The selected dimensions, materials, components, options and documentation are confirmed before manufacturing.
The cabinet is manufactured and inspected according to the approved product scope.
The product is delivered to the agreed location. Installation and commissioning services can be included where applicable.
Applicable testing, documentation and operator guidance can be provided according to the order scope.
Air Shower Price
Air Shower price depends on the chamber size, number of users, construction material, nozzle arrangement, door configuration, filtration, controls and cleanroom entry requirement.
- Chamber dimensions
- Single-person or multi-person configuration
- Personnel or equipment use
- GI or SS 304 construction
- HEPA filter size and quantity
- Number of air nozzles
- Entry and exit configuration
- Floor construction
- Microprocessor controls
- Touch-panel controls
- Audio system
- Interlocking arrangement
- Quantity
- Installation requirements
- Project location
What is an Air Shower?
An Air Shower is an enclosed cleanroom entry chamber that uses high-velocity filtered air to remove loose particles from personnel, garments, carts or equipment before entry into a cleaner environment.
How does an Air Shower work?
High-velocity air jets dislodge particles from clothing and surfaces. The released particles are drawn into the recirculating filtration system before the clean cycle is completed.
What is the Air Shower airflow velocity?
Aeromech specifies an airflow velocity of 25 ± 2 m/s, equivalent to approximately 5000 FPM ± 300 FPM.
What cleanliness level is supplied from the filter?
The first air from the filter is specified as ISO Class 5 as per ISO 14644-1.
What type of HEPA filter is used?
The current Aeromech specification uses an imported minipleat H13 HEPA filter with 99.97% efficiency down to 0.3 micron.
Can an Air Shower be used for carts and equipment?
Yes. Double-door models can be configured to allow carts and larger equipment to move into cleanroom areas.
What door configurations are available?
Available configurations include Straight Entry / Straight Exit, Straight Entry / Right Exit, Straight Entry / Left Exit and Straight Entry / Right and Left Exit.
What safety functions are provided?
The system includes emergency-stop and power-failure safety functions, along with panic switches inside and outside the chamber.
Does Aeromech manufacture Air Shower?
Yes. Aeromech manufactures Air Shower with configurations based on the application, required dimensions, construction material and technical requirements. Contact our team to discuss available options.
What is the price of Air Shower?
The price of Air Shower depends on the size, construction material, technical specifications, optional features, quantity and delivery location. Share your requirements with Aeromech for a customised quotation.
What services does Aeromech offer for Air Shower?
Aeromech offers product-selection assistance and applicable installation, testing, maintenance and after-sales support for Air Shower. The available services depend on the product configuration, project location and agreed scope.
Does Aeromech supply Air Shower across India?
Yes. Aeromech supplies Air Shower across major cities and industrial areas in India including Chennai, Coimbatore, Bengaluru, Hyderabad, Kochi, Pune, Mumbai, Ahmedabad, Indore, Bhubaneswar, Kolkata, New Delhi, Gurugram, Mohali.
Delivery schedules, freight and installation arrangements depend on the selected configuration, quantity and project location.
Why choose Aeromech?
Aeromech reviews the intended process before recommending a product configuration.
Cabinet dimensions, construction materials, side panels, monitoring and accessories can be selected according to the approved requirement.
Applicable specifications and drawings are documented before manufacturing.
Aeromech supplies cleanroom and laboratory equipment across major Indian locations.
Installation, commissioning and applicable performance testing can be included in the project scope.
Maintenance, filter replacement, performance testing and other applicable support are available after installation.
Air Shower Supply and Service across India
Air Shower Manufacturer & Supplier in Chennai
Aeromech is a manufacturer and supplier of Air Shower in Chennai and the surrounding region, Vellore, Puducherry, Tirupati, Sri City, Alathur, Gummidipoondi, Cheyyar, Oragadam, Sriperumbudur, Irungattukottai, Maraimalai Nagar, Ambattur, Thirumudivakkam, Perungudi, Manali, Ennore, Thervoy Kandigai, Ranipet, Walajapet, Renigunta, Srikalahasti, Tada, Naidupeta, Menakuru.
Air Shower Manufacturer & Supplier in Coimbatore
Aeromech manufactures and supplies Air Shower throughout Coimbatore and the surrounding region, Trichy, Madurai, Tirunelveli, Thoothukudi, Perundurai, Gangaikondan, Karuppur, Palladam, Erode, Kappalur, Kurichi.
Air Shower Manufacturer & Supplier in Bengaluru
Aeromech is a manufacturer and supplier of Air Shower in Bengaluru and the surrounding region, Hosur, Mysuru, Mangaluru, Hubballi, Shoolagiri, Mathigiri, Peenya, Bommasandra, Jigani, Whitefield, Yelahanka, Harohalli, Bidadi, Nelamangala, Dobbaspet, Narsapura, Hoskote, Doddaballapur, Nanjangud, Hebbal, Baikampady, Vasanthanarasapura, Hindupur.
Air Shower Manufacturer & Supplier in Hyderabad
Aeromech manufactures and supplies Air Shower throughout Hyderabad and the surrounding region, covering Sangareddy, Warangal, Vijayawada, Kakinada, Genome Valley, Jeedimetla, Nacharam, Cherlapally, Patancheru, Bollaram, Medchal, Maheshwaram, Kompally, Shamirpet, Kattedan, Pashamylaram, Gannavaram, Kondapalli, Samalkot, Kopparthy.
Air Shower Manufacturer & Supplier in Kochi
Aeromech is a manufacturer and supplier of Air Shower in Kochi and the surrounding region, Thiruvananthapuram, Kozhikode, Kalamassery, Eloor, Kakkanad, Ambalamugal, Kazhakkoottam, Karyavattom, Kanjikode, Ramanattukara.
Air Shower Manufacturer & Supplier in Pune
Aeromech manufactures and supplies Air Shower throughout Pune and the surrounding region, covering Aurangabad, Chakan, Talegaon, Ranjangaon, Hinjawadi, Pimpri, Bhosari, Pirangut, Baramati, Jejuri, Kurkumbh, Shendra, Waluj, Bidkin, Verna, Corlim, Kundaim.
Air Shower Manufacturer & Supplier in Mumbai
Aeromech is a manufacturer and supplier of Air Shower in Mumbai and the surrounding region, Navi Mumbai, Nashik, Taloja, Mahape, Rabale, Turbhe, Airoli, Satpur, Ambad, Sinnar, Tarapur, Boisar, Ambernath.
Air Shower Manufacturer & Supplier in Ahmedabad
Aeromech manufactures and supplies Air Shower throughout Ahmedabad and the surrounding region, covering Vadodara, Surat, Bharuch, Ankleshwar, Vapi, Gandhinagar, Vatva, Naroda, Changodar, Sanand, Odhav, Kathwada, Bavla, Makarpura, Savli, Nandesari, Manjusar, Panoli, Jhagadia, Dahej, Vilayat, Sachin, Hazira, Palsana, Sarigam, Umbergaon, Jodhpur, Udaipur.
Air Shower Manufacturer & Supplier in Indore
Aeromech is a manufacturer and supplier of Air Shower in Indore and the surrounding region, Indore, Bhopal, Nagpur, Pithampur, Sanwer, Rau, Mandideep, Govindpura, Vikram Udyogpuri, Dewas, Malanpur, Kota.
Air Shower Manufacturer & Supplier in Bhubaneswar
Aeromech manufactures and supplies Air Shower throughout Bhubaneswar and the surrounding region, covering Cuttack, Visakhapatnam, Raipur, Parawada, Atchutapuram, Duvvada, Gajuwaka, Urla, Siltara, Bhilai, Borai, Sirgitti, Mancheswar, Khordha, Infovalley, Choudwar, Angul, Jharsuguda, Kalunga, Paradip.
Air Shower Manufacturer & Supplier in Kolkata
Aeromech is a manufacturer and supplier of Air Shower in Kolkata and the surrounding region, Kalyani, Jamshedpur, Dhulagarh, Bantala, Salt Lake, Rajarhat, Uluberia, Dankuni, Durgapur, Haldia, Adityapur, Tatisilwai, Bokaro, Sindri, Ranchi.
Air Shower Manufacturer & Supplier in New Delhi
Aeromech manufactures and supplies Air Shower throughout New Delhi and the surrounding region, covering Noida, Greater Noida, Ghaziabad, Lucknow, Haridwar, Surajpur, Kasna, Ecotech, Dadri, Sikandrabad, Sahibabad, Amausi, Panki, Kuberpur, Naini, Kanpur, Agra, Bahadrabad, Selaqui, Pantnagar, Rudrapur, Kashipur, Bawana.
Air Shower Manufacturer & Supplier in Gurugram
Aeromech is a manufacturer and supplier of Air Shower in Gurugram and the surrounding region, Manesar, Faridabad, Jaipur, Udyog Vihar, Dharuhera, Ballabgarh, Kundli, Samalkha, Bawal, Rohtak, Sitapura, Bhiwadi, Neemrana, Khushkhera, Behror.
Air Shower Manufacturer & Supplier in Mohali
Aeromech manufactures and supplies Air Shower throughout Mohali and the surrounding region, covering Ludhiana, Baddi, Nalagarh, Dera Bassi, Lalru, Focal Point, Kapurthala Road, Rajpura, Mandi Gobindgarh, Barotiwala, Parwanoo, Kala Amb, Paonta Sahib, Tahliwal.
Custom solutions designed to meet your cleanroom requirements anywhere in India.
