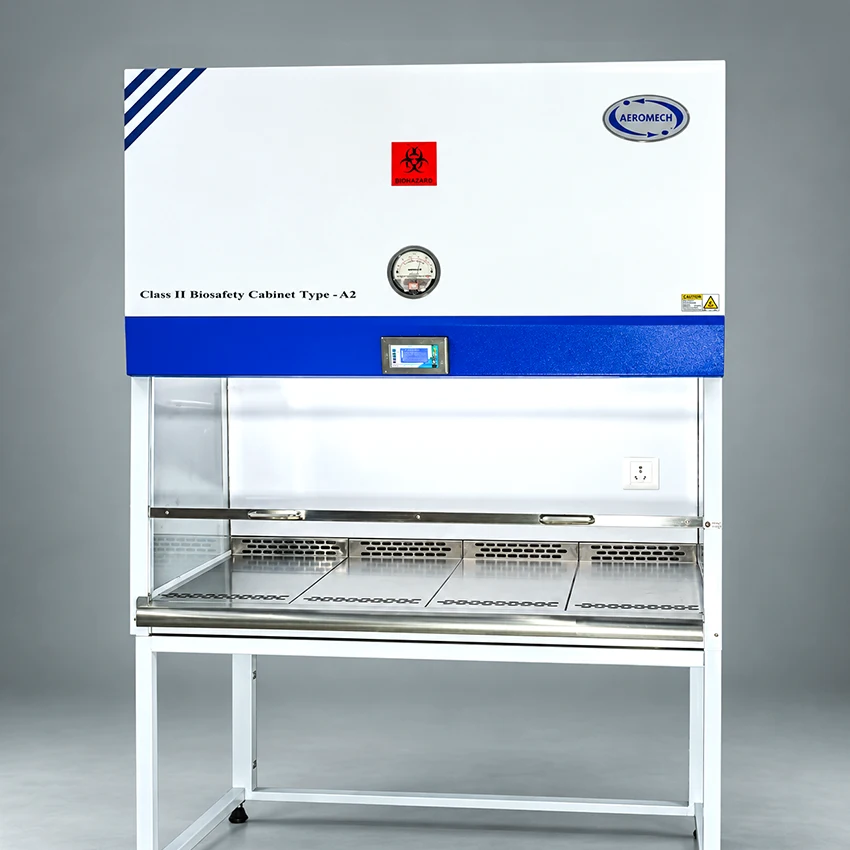

Class II Biosafety Cabinet Type A2 Manufacturers in India
Aeromech manufactures and supplies Class II Biosafety Cabinet Type A2 systems designed to protect personnel, product and the surrounding environment during biological handling. The cabinet uses controlled inflow, vertical downflow and HEPA filtration to maintain an ISO Class 5 working area.
Aeromech supplies Class II Biosafety Cabinet Type A2 systems across Chennai, Coimbatore, Bengaluru, Hyderabad, Kochi, Pune, Mumbai, Ahmedabad, Indore, Bhubaneswar, Kolkata, New Delhi, Gurugram and Mohali.
- Personnel, Product & Environment Protection
- ISO Class 5 Work Area
- 70% Recirculation / 30% Exhaust
Cleanroom Systems Installed
Support Across Major Indian Cities
Configuration Based on Your Requirement
Testing, Maintenance and Service Assistance

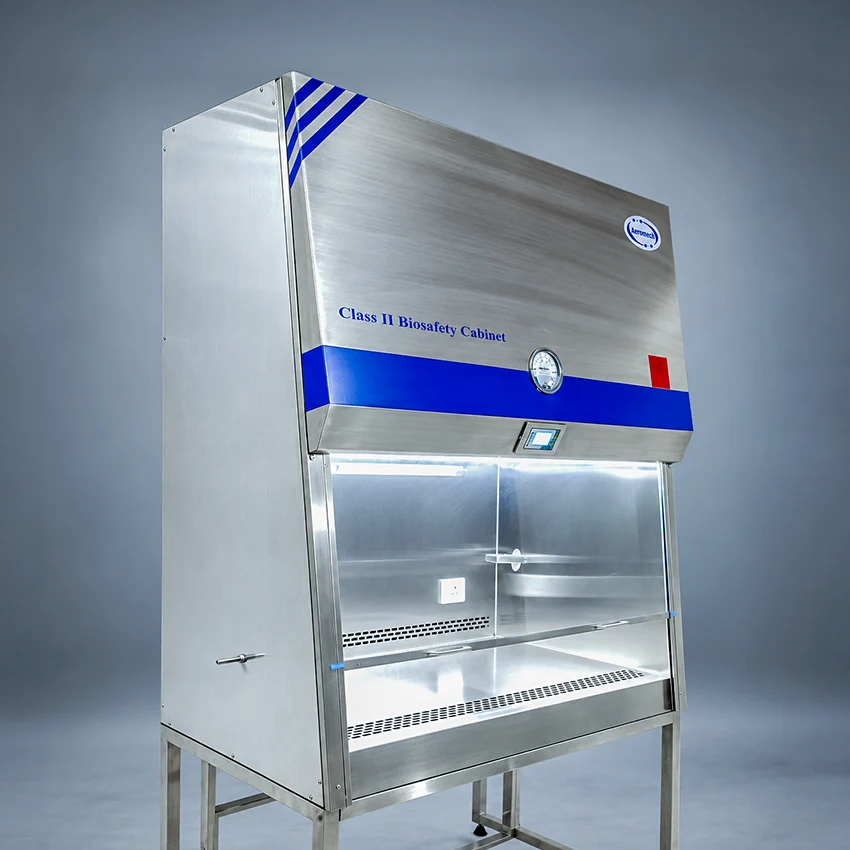

What Is Class II Biosafety Cabinet Type A2?
A Class II Biosafety Cabinet Type A2 is a ventilated laboratory cabinet designed to provide protection for the operator, the product being handled and the surrounding environment.
Air enters through the front opening and forms an inward airflow barrier that helps protect the operator. HEPA-filtered vertical downflow passes over the work area to protect the product. Contaminated air is then drawn through the front and rear grilles, with approximately 70% recirculated through the supply HEPA filter and about 30% exhausted through the exhaust HEPA filter.
How Class II Biosafety Cabinet Type A2 Works?
- Room air enters through the front opening.
- Inflow creates a protective air barrier for the operator.
- HEPA-filtered air flows vertically over the work surface.
- Air is drawn through the front and rear intake grilles.
- Approximately 70% of the air is recirculated.
- Approximately 30% is exhausted through the exhaust HEPA filter.
- The cabinet maintains an ISO Class 5 working environment.
Class II Biosafety Cabinet Type A2 Applications
Aeromech Class II Biosafety Cabinet Type A2 systems are suitable for:
- Pharmaceutical laboratories
- Biotechnology laboratories
- Research institutions
- Industrial laboratories
- Microbiology laboratories
- Clinical laboratories
- Diagnostic laboratories
- Medical research facilities
- Cell culture work
- Biological sample handling
- Biosafety Level 1 laboratories
- Biosafety Level 2 laboratories
- Biosafety Level 3 applications within the cabinet’s approved scope
The material, process and associated hazards must be reviewed before selecting an Class II Biosafety Cabinet Type A2 cabinet.
Important Product-Selection Notice
Class II Biosafety Cabinet Type A2 is intended for applications requiring simultaneous protection of personnel, product and the environment during biological work.
Selection should consider:
- Biological material being handled
- Biosafety level
- Required work opening
- Inflow and downflow requirements
- Exhaust arrangement
- Cabinet size
- Work-area dimensions
- HEPA filtration
- Room ventilation
- Required accessories
- Certification and testing requirements
- Laboratory operating procedures
The cabinet should be selected according to the biological risk assessment, laboratory procedure and facility ventilation requirements.
Class II Biosafety Cabinet Type A2 Features
The Type A2 cabinet combines controlled inflow, vertical HEPA-filtered downflow and filtered exhaust to provide protection for the operator, the material being handled and the laboratory environment.
Approximately 70% of the cabinet air is recirculated through the downflow HEPA filter, while approximately 30% is exhausted through a separate HEPA filter.
The working zone is designed to provide ISO Class 5 air cleanliness as per ISO 14644-1.
The cabinet maintains a minimum inflow velocity of 0.45 m/s at the specified front opening, together with controlled vertical downflow over the work area.
The cabinet includes a stainless steel work table, bright internal lighting, front access and low-noise operation for routine laboratory work.
A GLCD microprocessor display provides operating information and system control for the cabinet.
Class II Biosafety Cabinet Type A2 Specifications & Options
| Specification | Standard Product Information |
|---|---|
| Product | Aeromech Class II Biosafety Cabinet Type A2 |
| Type | Tabletop / Stand Mounted |
| Airflow Pattern | Vertical |
| Air Balancing | 70% Recirculation / 30% Exhaust |
| Protection | Product, Personnel and Environmental Protection |
| Biosafety Level | Biosafety Level 1, 2 & 3 |
| Exhaust Requirement | Return to Laboratory or Thimble Ducting Only |
| Cleanliness Level | ISO Class 5 as per ISO 14644-1 |
| Inflow Velocity | Minimum 0.53 m/s (105 FPM ) at 8” Front opening |
| Downflow Velocity | 0.30 m/s (65 FPM) |
| Main Body MOC | Galvanized Iron with PU Coating / Stainless Steel with Satin Finish |
| Working Area MOC | Stainless Steel IS 304 Grade, Satin Finish |
| Supply Filter | HEPA Filter H14 Grade |
| Supply Filter Efficiency | 99.99% down to 0.3 Microns |
| Exhaust Filter | HEPA Filter H14 Grade |
| Exhaust Filter Efficiency | 99.99% down to 0.3 Microns |
| Pre-Filter | Aeromech Make, EU4 Rating |
| Pre-Filter Efficiency | 90% down to 10 Microns |
| Noise Level | Less than 70 dB(A) |
| Light Intensity | Minimum 900 Lux inside the Working Area at Ambient Zero |
| Vibration Level | Minimum |
| Differential Pressure Gauge | Magnehelic Gauge, Dwyer USA |
| Motor Blower Assembly | Induction Motor with Centrifugal Blower |
| Blower Balancing | Statically and Dynamically Balanced |
| Blower Mounting | Spring Suspension System |
| Electrical Socket | 3-Pin Socket, 15 AMP – 1 No. |
| Other Switches | ON/OFF Switches for Motor Blower and Lights |
| Display | GLCD Microprocessor Display |
Standard components
Depending on the approved model, the standard configuration includes components specified for the Class II Biosafety Cabinet Type A2 system such as:
- Germicidal UV lamp
- Cool white LED light
- Magnehelic gauge
- UV-stabilised polycarbonate front door
- Nylon castor wheels
- Levelling leg
- Combined socket switch
Is Class II Biosafety Cabinet Type A2 Right for Your Application?
Class II Biosafety Cabinet Type A2 is suitable where biological work requires protection of the operator, the product and the environment within a controlled cabinet.
It can be considered for applications involving:
- Microbiological procedures
- Cell culture
- Clinical sample processing
- Diagnostic laboratory work
- Pharmaceutical research
- Biotechnology research
- Biological sample preparation
- Non-volatile biological agents
- Routine biosafety laboratory procedures
Class II Biosafety Cabinet Type A2 Manufacturers in India
Aeromech manufactures Class II Biosafety Cabinet Type A2 systems for pharmaceutical, biotechnology, research, clinical and industrial laboratory applications.
The cabinet can be configured according to:
- Tabletop or stand-mounted requirement
- Cabinet size
- Work-area dimensions
- Main body construction
- Exhaust arrangement
- Laboratory layout
- Required accessories
- Thimble Ducting Requirements
- Testing and certification scope
Aeromech also provides Class II Biosafety Cabinet certification services and has certified more than 1,800 NSF/EN Class II cabinets.
Class II Biosafety Cabinet Type A2 Suppliers in India
Aeromech supplies Class II Biosafety Cabinet Type A2 cabinets to customers across major Indian industrial and research locations. Our supply process can include:
We review the application, material type, required work area, project location and preferred configuration.
Aeromech recommends a suitable product configuration based on the information provided.
The selected dimensions, materials, components, options and documentation are confirmed before manufacturing.
The cabinet is manufactured and inspected according to the approved product scope.
The product is delivered to the agreed location. Installation and commissioning services can be included where applicable.
Applicable testing, documentation and operator guidance can be provided according to the order scope.
Class II Biosafety Cabinet Type A2 Price
Class II Biosafety Cabinet Type A2 price depends on the cabinet size, construction material, filtration system, mounting configuration, exhaust arrangement, accessories, ducting and certification requirements.
- Cabinet width and work-area size
- Tabletop or stand-mounted configuration
- Galvanized Iron or stainless steel construction
- Supply HEPA filter size
- Exhaust HEPA filter size
- Microprocessor controls
- Front-door configuration
- UV lamp
- LED lighting
- Pressure monitoring
- Thimble ducting
- Exhaust blower
- Optional accessories
- Installation requirement
- Testing and certification
- Quantity
- Project location
Frequently Asked Questions
Find answers to the most common questions about Class II Biosafety Cabinet Type A2
What is a Class II Biosafety Cabinet Type A2?
A Class II Biosafety Cabinet Type A2 is a ventilated laboratory cabinet designed to provide protection for personnel, the product and the environment using controlled inflow, HEPA-filtered vertical downflow and HEPA-filtered exhaust.
What is the airflow balance in a Type A2 Biosafety Cabinet?
Aeromech Class II Biosafety Cabinet Type A2 uses approximately 70% recirculated air and 30% exhaust air.
What is the minimum inflow velocity?
The minimum inflow velocity is 0.45 m/s, or 90 FPM, at an 8-inch front opening.
What is the downflow velocity?
The specified downflow velocity is 0.30 m/s, or 65 FPM.
What cleanliness level does the cabinet provide?
The working area is designed for ISO Class 5 cleanliness as per ISO 14644-1.
What HEPA filter efficiency is specified?
The supply and exhaust HEPA filters are specified at 99.99% efficiency down to 0.3 microns.
Can a Type A2 Biosafety Cabinet be ducted?
The Aeromech Type A2 cabinet can return exhaust air to the laboratory or use thimble ducting. A thimble duct with exhaust blower is available as an optional accessory.
What applications are suitable for a Type A2 cabinet?
Typical applications include pharmaceutical laboratories, biotechnology laboratories, research institutions, clinical laboratories and industrial laboratories handling biological materials within the approved biosafety scope.
Do we Require Exhaust Ducting for Class II Biosafety cabinet type A2
No, a Class II Biosafety Cabinet Type A2 does not normally require external exhaust
ducting. However, external exhaust may be necessary depending on the application,
chemicals handled, and laboratory safety requirements.
For Aeromech's Class II Type A2 Biosafety Cabinet, there are two possible
installation arrangements.
Type A2 with Canopy Exhaust Connection
- HEPA-filtered exhaust connected to building exhaust through a canopy
(thimble). - Requires an appropriate external exhaust system.
- Used where risk assessment permits limited quantities of volatile hazardous
chemicals. - Requires proper exhaust airflow monitoring and interlocks as applicable.
Does Aeromech manufacture Class II Biosafety Cabinet Type A2?
Yes. Aeromech manufactures Class II Biosafety Cabinet Type A2 with configurations based on the application, required dimensions, construction material and technical requirements. Contact our team to discuss available options.
What is the price of Class II Biosafety Cabinet Type A2?
The price of Class II Biosafety Cabinet Type A2 depends on the size, construction material, technical specifications, optional features, quantity and delivery location. Share your requirements with Aeromech for a customised quotation.
What services does Aeromech offer for Class II Biosafety Cabinet Type A2?
Aeromech offers product-selection assistance and applicable installation, testing, maintenance and after-sales support for Class II Biosafety Cabinet Type A2. The available services depend on the product configuration, project location and agreed scope.
Does Aeromech supply Class II Biosafety Cabinet Type A2 across India?
Yes. Aeromech supplies Class II Biosafety Cabinet Type A2 across major cities and industrial areas in India including Chennai, Coimbatore, Bengaluru, Hyderabad, Kochi, Pune, Mumbai, Ahmedabad, Indore, Bhubaneswar, Kolkata, New Delhi, Gurugram, Mohali.
Delivery schedules, freight and installation arrangements depend on the selected configuration, quantity and project location.
Why choose Aeromech?
Aeromech reviews the intended process before recommending a product configuration.
Cabinet dimensions, construction materials, side panels, monitoring and accessories can be selected according to the approved requirement.
Applicable specifications and drawings are documented before manufacturing.
Aeromech supplies cleanroom and laboratory equipment across major Indian locations.
Installation, commissioning and applicable performance testing can be included in the project scope.
Maintenance, filter replacement, performance testing and other applicable support are available after installation.
Class II Biosafety Cabinet Type A2 Supply and Service across India
Class II Biosafety Cabinet Type A2 Manufacturer & Supplier in Chennai
Aeromech is a manufacturer and supplier of Class II Biosafety Cabinet Type A2 in Chennai and the surrounding region, Vellore, Puducherry, Tirupati, Sri City, Alathur, Gummidipoondi, Cheyyar, Oragadam, Sriperumbudur, Irungattukottai, Maraimalai Nagar, Ambattur, Thirumudivakkam, Perungudi, Manali, Ennore, Thervoy Kandigai, Ranipet, Walajapet, Renigunta, Srikalahasti, Tada, Naidupeta, Menakuru.
Class II Biosafety Cabinet Type A2 Manufacturer & Supplier in Coimbatore
Aeromech manufactures and supplies Class II Biosafety Cabinet Type A2 throughout Coimbatore and the surrounding region, Trichy, Madurai, Tirunelveli, Thoothukudi, Perundurai, Gangaikondan, Karuppur, Palladam, Erode, Kappalur, Kurichi.
Class II Biosafety Cabinet Type A2 Manufacturer & Supplier in Bengaluru
Aeromech is a manufacturer and supplier of Class II Biosafety Cabinet Type A2 in Bengaluru and the surrounding region, Hosur, Mysuru, Mangaluru, Hubballi, Shoolagiri, Mathigiri, Peenya, Bommasandra, Jigani, Whitefield, Yelahanka, Harohalli, Bidadi, Nelamangala, Dobbaspet, Narsapura, Hoskote, Doddaballapur, Nanjangud, Hebbal, Baikampady, Vasanthanarasapura, Hindupur.
Class II Biosafety Cabinet Type A2 Manufacturer & Supplier in Hyderabad
Aeromech manufactures and supplies Class II Biosafety Cabinet Type A2 throughout Hyderabad and the surrounding region, covering Sangareddy, Warangal, Vijayawada, Kakinada, Genome Valley, Jeedimetla, Nacharam, Cherlapally, Patancheru, Bollaram, Medchal, Maheshwaram, Kompally, Shamirpet, Kattedan, Pashamylaram, Gannavaram, Kondapalli, Samalkot, Kopparthy.
Class II Biosafety Cabinet Type A2 Manufacturer & Supplier in Kochi
Aeromech is a manufacturer and supplier of Class II Biosafety Cabinet Type A2 in Kochi and the surrounding region, Thiruvananthapuram, Kozhikode, Kalamassery, Eloor, Kakkanad, Ambalamugal, Kazhakkoottam, Karyavattom, Kanjikode, Ramanattukara.
Class II Biosafety Cabinet Type A2 Manufacturer & Supplier in Pune
Aeromech manufactures and supplies Class II Biosafety Cabinet Type A2 throughout Pune and the surrounding region, covering Aurangabad, Chakan, Talegaon, Ranjangaon, Hinjawadi, Pimpri, Bhosari, Pirangut, Baramati, Jejuri, Kurkumbh, Shendra, Waluj, Bidkin, Verna, Corlim, Kundaim.
Class II Biosafety Cabinet Type A2 Manufacturer & Supplier in Mumbai
Aeromech is a manufacturer and supplier of Class II Biosafety Cabinet Type A2 in Mumbai and the surrounding region, Navi Mumbai, Nashik, Taloja, Mahape, Rabale, Turbhe, Airoli, Satpur, Ambad, Sinnar, Tarapur, Boisar, Ambernath.
Class II Biosafety Cabinet Type A2 Manufacturer & Supplier in Ahmedabad
Aeromech manufactures and supplies Class II Biosafety Cabinet Type A2 throughout Ahmedabad and the surrounding region, covering Vadodara, Surat, Bharuch, Ankleshwar, Vapi, Gandhinagar, Vatva, Naroda, Changodar, Sanand, Odhav, Kathwada, Bavla, Makarpura, Savli, Nandesari, Manjusar, Panoli, Jhagadia, Dahej, Vilayat, Sachin, Hazira, Palsana, Sarigam, Umbergaon, Jodhpur, Udaipur.
Class II Biosafety Cabinet Type A2 Manufacturer & Supplier in Indore
Aeromech is a manufacturer and supplier of Class II Biosafety Cabinet Type A2 in Indore and the surrounding region, Indore, Bhopal, Nagpur, Pithampur, Sanwer, Rau, Mandideep, Govindpura, Vikram Udyogpuri, Dewas, Malanpur, Kota.
Class II Biosafety Cabinet Type A2 Manufacturer & Supplier in Bhubaneswar
Aeromech manufactures and supplies Class II Biosafety Cabinet Type A2 throughout Bhubaneswar and the surrounding region, covering Cuttack, Visakhapatnam, Raipur, Parawada, Atchutapuram, Duvvada, Gajuwaka, Urla, Siltara, Bhilai, Borai, Sirgitti, Mancheswar, Khordha, Infovalley, Choudwar, Angul, Jharsuguda, Kalunga, Paradip.
Class II Biosafety Cabinet Type A2 Manufacturer & Supplier in Kolkata
Aeromech is a manufacturer and supplier of Class II Biosafety Cabinet Type A2 in Kolkata and the surrounding region, Kalyani, Jamshedpur, Dhulagarh, Bantala, Salt Lake, Rajarhat, Uluberia, Dankuni, Durgapur, Haldia, Adityapur, Tatisilwai, Bokaro, Sindri, Ranchi.
Class II Biosafety Cabinet Type A2 Manufacturer & Supplier in New Delhi
Aeromech manufactures and supplies Class II Biosafety Cabinet Type A2 throughout New Delhi and the surrounding region, covering Noida, Greater Noida, Ghaziabad, Lucknow, Haridwar, Surajpur, Kasna, Ecotech, Dadri, Sikandrabad, Sahibabad, Amausi, Panki, Kuberpur, Naini, Kanpur, Agra, Bahadrabad, Selaqui, Pantnagar, Rudrapur, Kashipur, Bawana.
Class II Biosafety Cabinet Type A2 Manufacturer & Supplier in Gurugram
Aeromech is a manufacturer and supplier of Class II Biosafety Cabinet Type A2 in Gurugram and the surrounding region, Manesar, Faridabad, Jaipur, Udyog Vihar, Dharuhera, Ballabgarh, Kundli, Samalkha, Bawal, Rohtak, Sitapura, Bhiwadi, Neemrana, Khushkhera, Behror.
Class II Biosafety Cabinet Type A2 Manufacturer & Supplier in Mohali
Aeromech manufactures and supplies Class II Biosafety Cabinet Type A2 throughout Mohali and the surrounding region, covering Ludhiana, Baddi, Nalagarh, Dera Bassi, Lalru, Focal Point, Kapurthala Road, Rajpura, Mandi Gobindgarh, Barotiwala, Parwanoo, Kala Amb, Paonta Sahib, Tahliwal.
Custom solutions designed to meet your cleanroom requirements anywhere in India.
What our Customers Say?
Our dedication to innovation allows us to provide solutions that not only meet but exceed the expectations of our clients.
We trust Aeromech for clean room solutions; their service enhanced our lab’s performance and maintained high cleanliness standards.
Production Head
Aeromech’s clean room engineering service significantly improved our workspace safety and efficiency, providing reliable solutions that meet all our lab requirements.
Chief surgeon
Our Blogs & Articles
