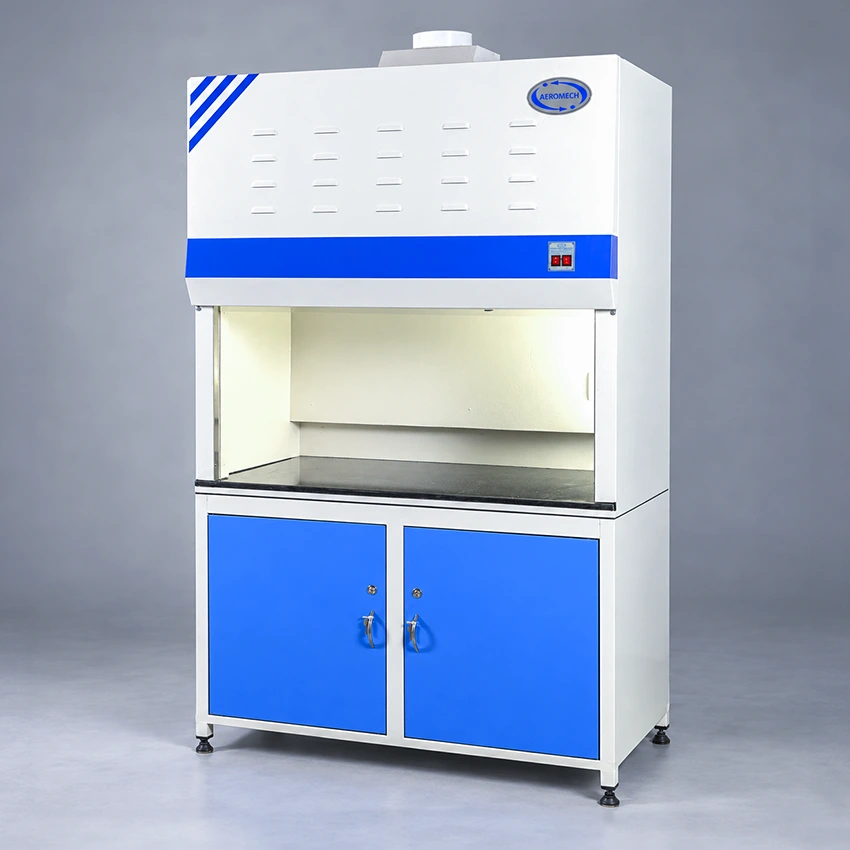

Fume Exhaust Hood Manufacturers in India
Aeromech manufactures and supplies Fume Exhaust Hoods designed to contain and remove hazardous fumes, vapours and gases generated during laboratory work. The enclosure, sash and exhaust system work together to draw contaminated air away from the user and discharge it safely from the workspace.
Aeromech supplies Fume Exhaust Hoods across Chennai, Coimbatore, Bengaluru, Hyderabad, Kochi, Pune, Mumbai, Ahmedabad, Indore, Bhubaneswar, Kolkata, New Delhi, Gurugram and Mohali.
- 0.45 ± 0.05 m/s Face Velocity
- ASHRAE 110 & EN 14175-3
- Bypass-Type Design
Cleanroom Systems Installed
Support Across Major Indian Cities
Configuration Based on Your Requirement
Testing, Maintenance and Service Assistance

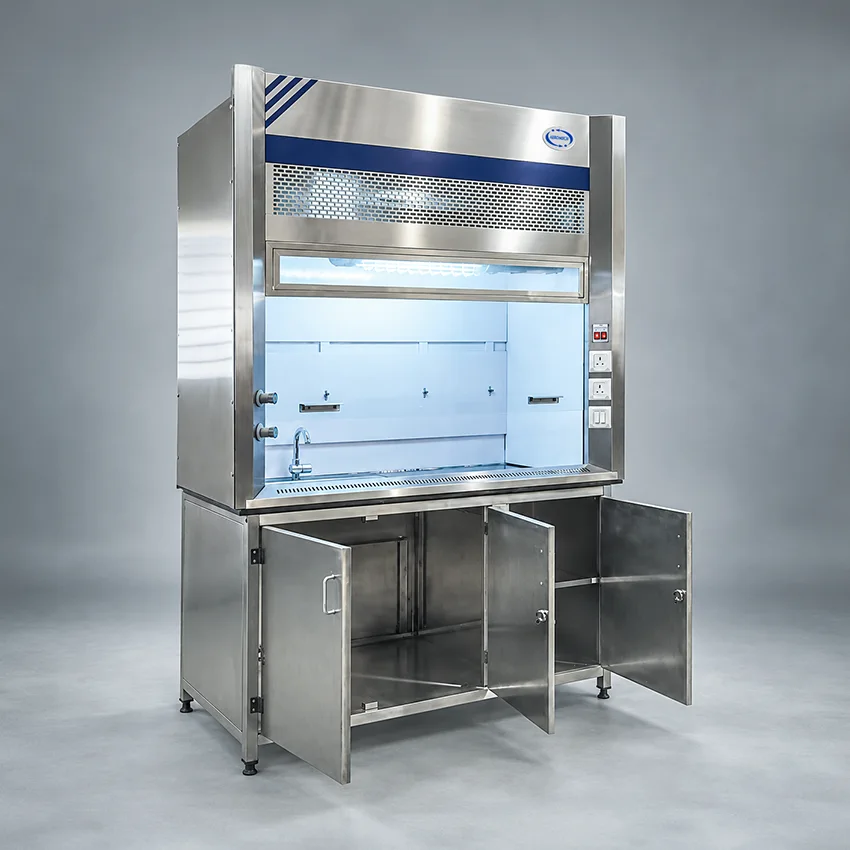

What Is Fume Exhaust Hood?
A Fume Exhaust Hood is an enclosed laboratory workstation used to capture and remove harmful fumes, vapours and gases generated during chemical handling, experiments and testing.
Air is drawn through the front sash opening and moves across the work area toward the exhaust system. This airflow helps contain contaminants inside the hood and reduces their escape into the laboratory.
Aeromech Fume Exhaust Hoods are available with different construction materials, worktop options and ducting arrangements for laboratory, pharmaceutical, research and chemical applications.
How Fume Exhaust Hood Works?
- Air enters through the front sash opening.
- Inward airflow captures fumes and vapours generated inside the hood.
- Contaminated air moves toward the rear exhaust section.
- The centrifugal blower maintains the required exhaust airflow.
- Air is discharged through the connected exhaust duct.
- Face velocity is monitored at the sash opening.
- The sash position controls the effective opening during operation.
Fume Exhaust Hood Applications
Aeromech Fume Exhaust Hood systems are suitable for:
- Pharmaceutical laboratories
- Biotechnology laboratories
- Chemical research
- Academic laboratories
- Environmental testing
- Quality-control laboratories
- R&D laboratories
- Chemical handling areas
- Sample preparation
- Industrial laboratories
- Hospital laboratories
The material, process and associated hazards must be reviewed before selecting an Fume Exhaust Hood cabinet.
Important Product-Selection Notice
A Fume Exhaust Hood should be selected according to the chemicals being handled, exhaust requirement, worktop material and laboratory ventilation design.
Selection should consider:
- Chemical type
- Vapour and fume characteristics
- Required hood dimensions
- Sash opening
- Required face velocity
- Exhaust duct size
- Blower capacity
- Worktop material
- Laboratory ventilation
- Airflow monitoring
- Utility requirements
- Applicable safety standards
The hood and exhaust system should be designed together so that the required containment and face velocity are maintained during use.
Fume Exhaust Hood Features
The Aeromech Fume Exhaust Hood is designed for a face velocity of 0.45 ± 0.05 m/s, equivalent to 90 FPM ± 10 FPM.
The bypass-type design helps maintain airflow through the hood as the sash position changes during laboratory work.
A TEK UK face velocity indicator with alarm provides continuous monitoring of airflow at the hood opening.
The working table can be configured with granite stone, FRP moulded top or SS 304 stainless steel depending on the chemical process.
The hood can be manufactured in Galvanized Iron with PU-coated finish, Stainless Steel with satin finish or wooden laminated construction.
Aeromech Fume Exhaust Hoods are designed with reference to ASHRAE 110 and EN 14175-3 for laboratory fume hood performance.
Fume Exhaust Hood Specifications & Options
| Specification | Standard Product Information |
|---|---|
| Product | Aeromech Fume Exhaust Hood – Bypass Type |
| Dimensions | As per Approved Drawing |
| Main Body MOC | Galvanized Iron with PU Coating / Stainless Steel with Satin Finish / Wooden Laminated |
| Front Sash Height | Maximum 700 mm |
| Exhaust Collar | Minimum 6-inch Diameter PVC Pipe |
| Motor Blower Assembly | Induction Motor with Centrifugal Blower |
| Blower Balancing | Statically and Dynamically Balanced |
| Blower Mounting | Spring Suspension System |
| Working Table | Granite Stone / FRP Moulded Top / SS 304 Stainless Steel Top |
| Side Panel Options | Clear Glass / Clear Acrylic / UV-Protected Polycarbonate |
| Airflow Monitor | TEK UK Face Velocity Indicator with Alarm |
| Lighting | Fluorescent Tube with Milky White Diffuser |
| Electrical Socket | 3-Pin Socket, 15 AMP – 1 No. |
| Controls | ON / OFF Switches with Indicator |
| Standard Reference | ASHRAE 110 / EN 14175-3 |
| Face Velocity | 0.45 ± 0.05 m/s |
| Face Velocity in FPM | 90 FPM ± 10 FPM |
| Illumination | Minimum 800 Lux on Work Table |
| Vibration Level | Minimum |
Standard components
Depending on the approved model, the standard configuration includes components specified for the Fume Exhaust Hood system such as:
- Fume hood enclosure
- Front sash
- Working table
- Exhaust collar
- Motor blower assembly
- Airflow monitor
- Internal lighting
- Electrical socket
- ON / OFF controls
- Side panels
Is Fume Exhaust Hood Right for Your Application?
A Fume Exhaust Hood is suitable where laboratory processes generate fumes, vapours or gases that need to be captured and exhausted away from the user.
It can be considered for:
- Chemical reactions
- Solvent handling
- Acid handling
- Sample preparation
- Pharmaceutical testing
- Research experiments
- Environmental analysis
- Quality-control work
- Laboratory processes involving hazardous vapours
Fume Exhaust Hood Manufacturers in India
Aeromech manufactures Fume Exhaust Hoods for pharmaceutical, biotechnology, chemical, environmental, academic and industrial laboratories.
The hood can be configured according to:
- Required hood dimensions
- Chemical process
- Front sash size
- Face velocity requirement
- Worktop material
- Construction material
- Exhaust arrangement
- Blower requirement
- Side-panel material
- Laboratory layout
- Utility requirements
The enclosure, table and ventilation system are configured together to provide controlled containment for laboratory fume-handling applications.
Fume Exhaust Hood Suppliers in India
Aeromech supplies Fume Exhaust Hood cabinets to customers across major Indian industrial and research locations. Our supply process can include:
We review the application, material type, required work area, project location and preferred configuration.
Aeromech recommends a suitable product configuration based on the information provided.
The selected dimensions, materials, components, options and documentation are confirmed before manufacturing.
The cabinet is manufactured and inspected according to the approved product scope.
The product is delivered to the agreed location. Installation and commissioning services can be included where applicable.
Applicable testing, documentation and operator guidance can be provided according to the order scope.
Fume Exhaust Hood Price
Fume Exhaust Hood price depends on the hood dimensions, construction material, worktop, sash configuration, exhaust blower, airflow monitoring and laboratory requirements.
- Hood dimensions
- Front sash size
- Galvanized Iron, Stainless Steel or laminated construction
- Granite, FRP or SS 304 worktop
- Exhaust collar size
- Blower capacity
- Exhaust ducting
- Airflow monitor
- Side-panel material
- Electrical utilities
- Number of units
- Installation scope
- Testing requirements
- Project location
Frequently Asked Questions
Find answers to the most common questions about Fume Exhaust Hood
What is a Fume Exhaust Hood?
A Fume Exhaust Hood is an enclosed laboratory workstation designed to capture and remove hazardous fumes, vapours and gases generated during chemical handling and experiments.
How does a Fume Exhaust Hood work?
Air enters through the front sash opening, moves across the working area and carries fumes toward the exhaust system, where they are removed from the laboratory.
What face velocity does the Aeromech Fume Exhaust Hood provide?
The specified face velocity is 0.45 ± 0.05 m/s, equivalent to 90 FPM ± 10 FPM.
What standards are referenced for Aeromech Fume Exhaust Hoods?
The current Aeromech specification references ASHRAE 110 and EN 14175-3.
What worktop materials are available?
Aeromech offers granite stone, FRP moulded top and SS 304 stainless steel worktop options.
What construction materials are available?
The hood can be manufactured in Galvanized Iron with PU-coated finish, Stainless Steel with satin finish or wooden laminated construction.
Does the Fume Exhaust Hood include airflow monitoring?
Yes. The current specification includes a TEK UK face velocity indicator with alarm.
What is the maximum front sash opening?
The current Aeromech specification states a maximum front sash height of 700 mm.
Does Aeromech manufacture Fume Exhaust Hood?
Yes. Aeromech manufactures Fume Exhaust Hood with configurations based on the application, required dimensions, construction material and technical requirements. Contact our team to discuss available options.
What is the price of Fume Exhaust Hood?
The price of Fume Exhaust Hood depends on the size, construction material, technical specifications, optional features, quantity and delivery location. Share your requirements with Aeromech for a customised quotation.
What services does Aeromech offer for Fume Exhaust Hood?
Aeromech offers product-selection assistance and applicable installation, testing, maintenance and after-sales support for Fume Exhaust Hood. The available services depend on the product configuration, project location and agreed scope.
Does Aeromech supply Fume Exhaust Hood across India?
Yes. Aeromech supplies Fume Exhaust Hood across major cities and industrial areas in India including Chennai, Coimbatore, Bengaluru, Hyderabad, Kochi, Pune, Mumbai, Ahmedabad, Indore, Bhubaneswar, Kolkata, New Delhi, Gurugram, Mohali.
Delivery schedules, freight and installation arrangements depend on the selected configuration, quantity and project location.
Why choose Aeromech?
Aeromech reviews the intended process before recommending a product configuration.
Cabinet dimensions, construction materials, side panels, monitoring and accessories can be selected according to the approved requirement.
Applicable specifications and drawings are documented before manufacturing.
Aeromech supplies cleanroom and laboratory equipment across major Indian locations.
Installation, commissioning and applicable performance testing can be included in the project scope.
Maintenance, filter replacement, performance testing and other applicable support are available after installation.
