Static Pass Box Manufacturers in India
Aeromech manufactures and supplies Static Pass Boxes for controlled material transfer between cleanrooms of the same classification. The double-door system uses interlocking, UV sterilisation and cleanable construction to help limit cross-contamination during material movement.
Aeromech supplies Static Pass Boxes across Chennai, Coimbatore, Bengaluru, Hyderabad, Kochi, Pune, Mumbai, Ahmedabad, Indore, Bhubaneswar, Kolkata, New Delhi, Gurugram and Mohali.
- Controlled Material Transfer
- Electromagnetic Interlocking
- SS 304 Work Area
Cleanroom Systems Installed
Support Across Major Indian Cities
Configuration Based on Your Requirement
Testing, Maintenance and Service Assistance

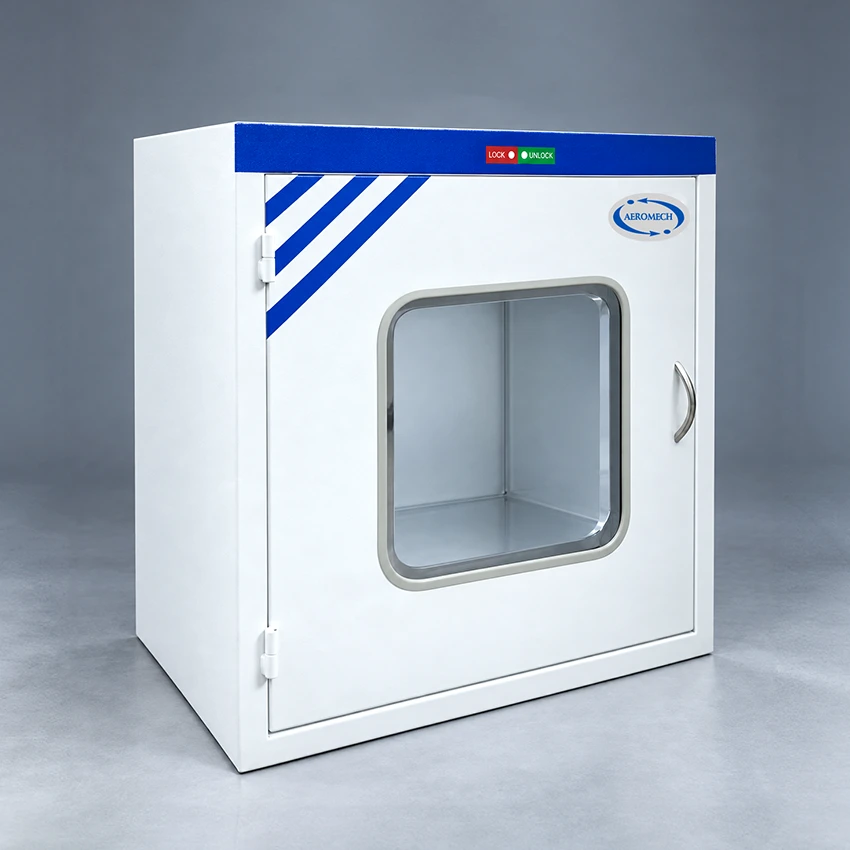

What Is Static Pass Box?
A Static Pass Box is a transfer chamber installed between two clean areas to move materials without unnecessary personnel movement or direct opening between the adjoining rooms.
Unlike a Dynamic Pass Box, a Static Pass Box does not use an active airflow or HEPA filtration system for maintaining a different cleanliness class. It is primarily used between areas having the same cleanliness classification.
The two doors are interlocked so that only one door can be opened at a time, helping maintain separation between the adjoining controlled areas.
How Static Pass Box Works?
- Material is placed inside through one side of the pass box.
- The first door is closed before the opposite door can be opened.
- The interlocking system prevents simultaneous door opening.
- UV light can be used during the transfer cycle.
- The receiving-side door is opened after the transfer condition is completed.
- Material is removed into the adjoining clean area.
Static Pass Box Applications
Aeromech Static Pass Box systems are suitable for:
- Pharmaceutical cleanrooms
- Biotechnology facilities
- Electronics cleanrooms
- Food-processing cleanrooms
- Hospital cleanrooms
- Laboratories
- Medical-device manufacturing
- Controlled production areas
- Material transfer between classified rooms
- Cleanroom support areas
The material, process and associated hazards must be reviewed before selecting an Static Pass Box cabinet.
Important Product-Selection Notice
A Static Pass Box is designed mainly for transferring materials between controlled rooms of the same cleanliness classification.
Selection should consider:
- Classification of both adjoining rooms
- Material dimensions
- Required internal chamber size
- Transfer frequency
- Door orientation
- Mechanical or electromagnetic interlocking
- UV sterilisation requirement
- Construction material
- Cleaning procedure
- Installation wall thickness
- Material movement direction
- Alarm and indication requirements
Static Pass Boxes should not be used where materials need to move between areas of different cleanliness classifications that require active filtered airflow control.
Static Pass Box Features
The electromagnetic interlocking system prevents both doors from opening simultaneously, maintaining separation between adjoining clean areas.
UV light at 254 nm can be used inside the chamber, with door interlocking incorporated into the UV operating arrangement.
The internal working area is manufactured from IS 304 grade stainless steel with a satin finish for cleanability and durability.
Double-skin swing doors include clear view panels, allowing the chamber status to be seen without opening the doors.
Door-interlock status can be supported by audible and visual alarms to indicate improper door operation.
The inner bottom corners are pencil-coved to reduce sharp internal joints and support easier routine cleaning.
Static Pass Box Specifications & Options
| Specification | Standard Product Information |
|---|---|
| Product | Aeromech Static Pass Box |
| Application | Material Transfer Between Cleanrooms of Same Classification |
| Main Body MOC | Galvanized Iron with PU Coating / Stainless Steel with Satin Finish |
| Working Area MOC | Stainless Steel IS 304 Grade, Satin Finish |
| Internal Corners | Pencil-Coved Bottom Corners |
| Doors | Double-Skin Swing Doors |
| Door View Panel | Clear View Panel |
| Door Interlocking | Electromagnetic Interlocking with Sensors |
| UV Lamp | 254 nm |
| UV Interlocking | Interlocked with Door Operation |
| Light Intensity | Minimum 900 Lux Inside Working Area at Ambient Zero |
| Vibration Level | Minimum |
| Alarm | Audible / Visual Alarm for False Door Interlocking |
Standard components
Depending on the approved model, the standard configuration includes components specified for the Static Pass Box system such as:
- Pass box enclosure
- SS 304 internal working area
- Double-skin swing doors
- Clear view panels
- Electromagnetic door interlocking
- Door sensors
- UV lamp
- Door-status indication
- Electrical controls
Is Static Pass Box Right for Your Application?
A Static Pass Box is suitable when materials need to move between two controlled rooms of the same cleanliness classification without opening a direct passage between the areas.
It can be considered for:
- Cleanroom-to-cleanroom material transfer
- Laboratory material movement
- Pharmaceutical manufacturing
- Controlled component transfer
- Medical-device production
- Electronics manufacturing
- Food-processing clean areas
- Hospital cleanrooms

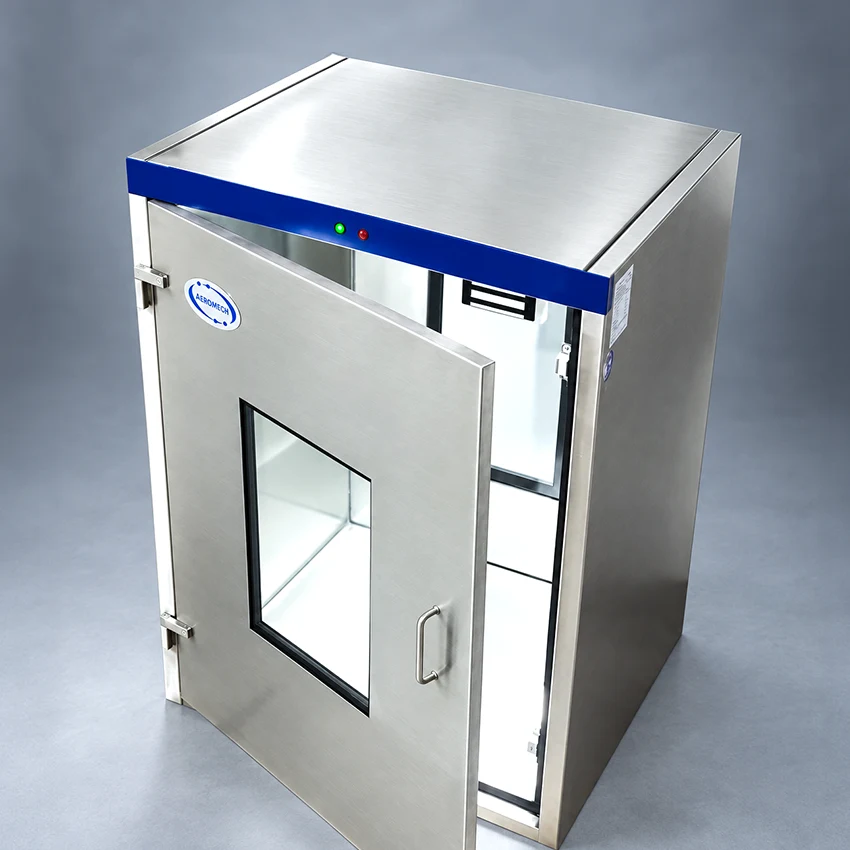

Static Pass Box Manufacturers in India
Aeromech manufactures Static Pass Boxes for pharmaceutical, biotechnology, healthcare, electronics, food-processing, laboratory and other cleanroom applications.
The Static Pass Box can be configured according to:
- Required chamber dimensions
- Material size
- Wall opening dimensions
- Main body construction
- Door orientation
- Interlocking arrangement
- UV requirement
- Alarm configuration
- Transfer direction
- Project-specific installation requirements
Mechanical and electronic interlocking configurations can be selected according to the cleanroom and material-transfer requirement.
Static Pass Box Suppliers in India
Aeromech supplies Static Pass Box cabinets to customers across major Indian industrial and research locations. Our supply process can include:
We review the application, material type, required work area, project location and preferred configuration.
Aeromech recommends a suitable product configuration based on the information provided.
The selected dimensions, materials, components, options and documentation are confirmed before manufacturing.
The cabinet is manufactured and inspected according to the approved product scope.
The product is delivered to the agreed location. Installation and commissioning services can be included where applicable.
Applicable testing, documentation and operator guidance can be provided according to the order scope.
Static Pass Box Price
Static Pass Box price depends on the internal dimensions, construction material, door configuration, interlocking system, UV arrangement, accessories and project requirements.
- Internal chamber dimensions
- Overall dimensions
- Material-transfer size
- Galvanized Iron or stainless steel construction
- Door size
- Door orientation
- Mechanical or electromagnetic interlocking
- UV lamp
- Alarm system
- Clear view panels
- Wall installation requirements
- Quantity
- Project location
Frequently Asked Questions
Find answers to the most common questions about Static Pass Box
What is a Static Pass Box?
A Static Pass Box is a transfer chamber used to move materials between cleanrooms of the same classification while reducing unnecessary door opening and personnel movement.
Where is a Static Pass Box used?
Static Pass Boxes are used in pharmaceutical cleanrooms, biotechnology facilities, electronics cleanrooms, hospital cleanrooms, laboratories, food-processing cleanrooms and other controlled environments.
How does a Static Pass Box prevent both doors from opening together?
Aeromech Static Pass Boxes use an electromagnetic interlocking arrangement with sensors to prevent simultaneous opening of both doors.
Does a Static Pass Box have HEPA filtration?
A standard Static Pass Box does not use an active HEPA-filtered airflow system. Where active filtration is required for transfer between different cleanliness zones, a Dynamic Pass Box may be considered.
What material is used inside the Static Pass Box?
The working area is manufactured from IS 304 grade stainless steel with a satin finish.
Does the Static Pass Box have UV light?
Yes. The Aeromech specification includes a 254 nm UV lamp with door interlocking.
What type of doors are provided?
The Static Pass Box uses double-skin swing doors with clear view panels.
What is the difference between Static and Dynamic Pass Boxes?
A Static Pass Box provides an enclosed interlocked transfer chamber without active filtered airflow. A Dynamic Pass Box includes an air circulation and filtration system for applications requiring controlled transfer between different cleanliness conditions.
Does Aeromech manufacture Static Pass Box?
Yes. Aeromech manufactures Static Pass Box with configurations based on the application, required dimensions, construction material and technical requirements. Contact our team to discuss available options.
What is the price of Static Pass Box?
The price of Static Pass Box depends on the size, construction material, technical specifications, optional features, quantity and delivery location. Share your requirements with Aeromech for a customised quotation.
What services does Aeromech offer for Static Pass Box?
Aeromech offers product-selection assistance and applicable installation, testing, maintenance and after-sales support for Static Pass Box. The available services depend on the product configuration, project location and agreed scope.
Does Aeromech supply Static Pass Box across India?
Yes. Aeromech supplies Static Pass Box across major cities and industrial areas in India including Chennai, Coimbatore, Bengaluru, Hyderabad, Kochi, Pune, Mumbai, Ahmedabad, Indore, Bhubaneswar, Kolkata, New Delhi, Gurugram, Mohali.
Delivery schedules, freight and installation arrangements depend on the selected configuration, quantity and project location.
Why choose Aeromech?
Aeromech reviews the intended process before recommending a product configuration.
Cabinet dimensions, construction materials, side panels, monitoring and accessories can be selected according to the approved requirement.
Applicable specifications and drawings are documented before manufacturing.
Aeromech supplies cleanroom and laboratory equipment across major Indian locations.
Installation, commissioning and applicable performance testing can be included in the project scope.
Maintenance, filter replacement, performance testing and other applicable support are available after installation.
Static Pass Box Supply and Service across India
Static Pass Box Manufacturer & Supplier in Chennai
Aeromech is a manufacturer and supplier of Static Pass Box in Chennai and the surrounding region, Vellore, Puducherry, Tirupati, Sri City, Alathur, Gummidipoondi, Cheyyar, Oragadam, Sriperumbudur, Irungattukottai, Maraimalai Nagar, Ambattur, Thirumudivakkam, Perungudi, Manali, Ennore, Thervoy Kandigai, Ranipet, Walajapet, Renigunta, Srikalahasti, Tada, Naidupeta, Menakuru.
Static Pass Box Manufacturer & Supplier in Coimbatore
Aeromech manufactures and supplies Static Pass Box throughout Coimbatore and the surrounding region, Trichy, Madurai, Tirunelveli, Thoothukudi, Perundurai, Gangaikondan, Karuppur, Palladam, Erode, Kappalur, Kurichi.
Static Pass Box Manufacturer & Supplier in Bengaluru
Aeromech is a manufacturer and supplier of Static Pass Box in Bengaluru and the surrounding region, Hosur, Mysuru, Mangaluru, Hubballi, Shoolagiri, Mathigiri, Peenya, Bommasandra, Jigani, Whitefield, Yelahanka, Harohalli, Bidadi, Nelamangala, Dobbaspet, Narsapura, Hoskote, Doddaballapur, Nanjangud, Hebbal, Baikampady, Vasanthanarasapura, Hindupur.
Static Pass Box Manufacturer & Supplier in Hyderabad
Aeromech manufactures and supplies Static Pass Box throughout Hyderabad and the surrounding region, covering Sangareddy, Warangal, Vijayawada, Kakinada, Genome Valley, Jeedimetla, Nacharam, Cherlapally, Patancheru, Bollaram, Medchal, Maheshwaram, Kompally, Shamirpet, Kattedan, Pashamylaram, Gannavaram, Kondapalli, Samalkot, Kopparthy.
Static Pass Box Manufacturer & Supplier in Kochi
Aeromech is a manufacturer and supplier of Static Pass Box in Kochi and the surrounding region, Thiruvananthapuram, Kozhikode, Kalamassery, Eloor, Kakkanad, Ambalamugal, Kazhakkoottam, Karyavattom, Kanjikode, Ramanattukara.
Static Pass Box Manufacturer & Supplier in Pune
Aeromech manufactures and supplies Static Pass Box throughout Pune and the surrounding region, covering Aurangabad, Chakan, Talegaon, Ranjangaon, Hinjawadi, Pimpri, Bhosari, Pirangut, Baramati, Jejuri, Kurkumbh, Shendra, Waluj, Bidkin, Verna, Corlim, Kundaim.
Static Pass Box Manufacturer & Supplier in Mumbai
Aeromech is a manufacturer and supplier of Static Pass Box in Mumbai and the surrounding region, Navi Mumbai, Nashik, Taloja, Mahape, Rabale, Turbhe, Airoli, Satpur, Ambad, Sinnar, Tarapur, Boisar, Ambernath.
Static Pass Box Manufacturer & Supplier in Ahmedabad
Aeromech manufactures and supplies Static Pass Box throughout Ahmedabad and the surrounding region, covering Vadodara, Surat, Bharuch, Ankleshwar, Vapi, Gandhinagar, Vatva, Naroda, Changodar, Sanand, Odhav, Kathwada, Bavla, Makarpura, Savli, Nandesari, Manjusar, Panoli, Jhagadia, Dahej, Vilayat, Sachin, Hazira, Palsana, Sarigam, Umbergaon, Jodhpur, Udaipur.
Static Pass Box Manufacturer & Supplier in Indore
Aeromech is a manufacturer and supplier of Static Pass Box in Indore and the surrounding region, Indore, Bhopal, Nagpur, Pithampur, Sanwer, Rau, Mandideep, Govindpura, Vikram Udyogpuri, Dewas, Malanpur, Kota.
Static Pass Box Manufacturer & Supplier in Bhubaneswar
Aeromech manufactures and supplies Static Pass Box throughout Bhubaneswar and the surrounding region, covering Cuttack, Visakhapatnam, Raipur, Parawada, Atchutapuram, Duvvada, Gajuwaka, Urla, Siltara, Bhilai, Borai, Sirgitti, Mancheswar, Khordha, Infovalley, Choudwar, Angul, Jharsuguda, Kalunga, Paradip.
Static Pass Box Manufacturer & Supplier in Kolkata
Aeromech is a manufacturer and supplier of Static Pass Box in Kolkata and the surrounding region, Kalyani, Jamshedpur, Dhulagarh, Bantala, Salt Lake, Rajarhat, Uluberia, Dankuni, Durgapur, Haldia, Adityapur, Tatisilwai, Bokaro, Sindri, Ranchi.
Static Pass Box Manufacturer & Supplier in New Delhi
Aeromech manufactures and supplies Static Pass Box throughout New Delhi and the surrounding region, covering Noida, Greater Noida, Ghaziabad, Lucknow, Haridwar, Surajpur, Kasna, Ecotech, Dadri, Sikandrabad, Sahibabad, Amausi, Panki, Kuberpur, Naini, Kanpur, Agra, Bahadrabad, Selaqui, Pantnagar, Rudrapur, Kashipur, Bawana.
Static Pass Box Manufacturer & Supplier in Gurugram
Aeromech is a manufacturer and supplier of Static Pass Box in Gurugram and the surrounding region, Manesar, Faridabad, Jaipur, Udyog Vihar, Dharuhera, Ballabgarh, Kundli, Samalkha, Bawal, Rohtak, Sitapura, Bhiwadi, Neemrana, Khushkhera, Behror.
Static Pass Box Manufacturer & Supplier in Mohali
Aeromech manufactures and supplies Static Pass Box throughout Mohali and the surrounding region, covering Ludhiana, Baddi, Nalagarh, Dera Bassi, Lalru, Focal Point, Kapurthala Road, Rajpura, Mandi Gobindgarh, Barotiwala, Parwanoo, Kala Amb, Paonta Sahib, Tahliwal.
Custom solutions designed to meet your cleanroom requirements anywhere in India.
